FTTH optical receiver problem

FTTH optical receiver malfunctions are often caused by poor optical signal, device misconfiguration, or hardware issues, and can be diagnosed by checking power, signal indicators, fiber connections, and optical power levels.

Understanding the FTTH Optical Receiver

An FTT

H optical receiver is a home-based device that converts optical signals from the fiber network into electrical signals for TV or data services. It uses a photodetector to convert light into a weak electrical signal, which is then amplified through preamplifiers and main amplifiers, equalized, and output to connected devices. Many receivers also employ Automatic Gain Control (AGC) to maintain consistent signal quality.

Common Causes of Malfunction

No Signal or Poor Signal QualityLoose or dirty fiber connectorsFiber breakage or excessive bendingLow optical power or high optical lossMisaligned or damaged photodetector Device Not Starting or ConnectingLoose power cable or power failureIncorrect device configuration (e.g., IP settings)Misconnected fiber ports Signal Instability or Weak OutputOverheating of the optical receiverAging or incompatible transceiver modulesAmplifier or AGC malfunction Troubleshooting StepsCheck Power and IndicatorsEnsure the power light on the ONT or optical receiver is steady. Verify the "LOS" (Loss of Signal) and "PON/LINK" lights; blinking or off lights indicate signal issues.

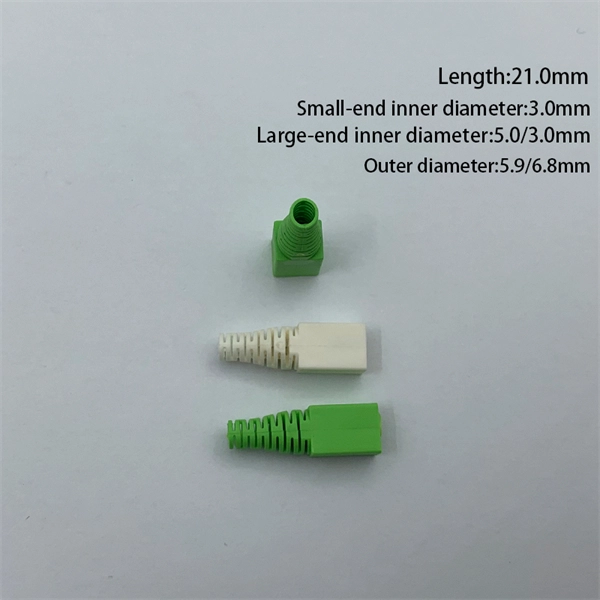

Inspect Fiber Connections

Clean fiber end faces with proper wipes to remove dust or contamination. Confirm connectors are securely attached and routed without sharp bends.

Measure Optical Power

Use an optical power meter to ensure the received signal is within the device's sensitivity range (typically -10 to -25 dBm for ONTs). Adjust or replace the fiber if power is too low.

Check Device Configuration

Verify that the receiver is connected to the correct ports and that network settings are correct. Update firmware if available to ensure compatibility with the network.

Monitor for Overheating

Ensure proper ventilation around the receiver. Avoid enclosed cabinets that can trap heat, which may degrade signal quality.

Replace Faulty Components

If the photodetector, amplifier, or transceiver module is damaged, replace with a certified compatible module.

Preventive Measures

Regularly clean fiber connectors and inspect for physical damage. Maintain proper ventilation to prevent thermal issues. Use vendor-approved optical modules and update firmware periodically.

Monitor optical power and signal quality using DDM or optical meters to detect early signs of degradation. By systematically checking power, signal indicators, fiber connections, optical power, and device configuration, most FTTH optical receiver malfunctions can be diagnosed and resolved efficiently.
