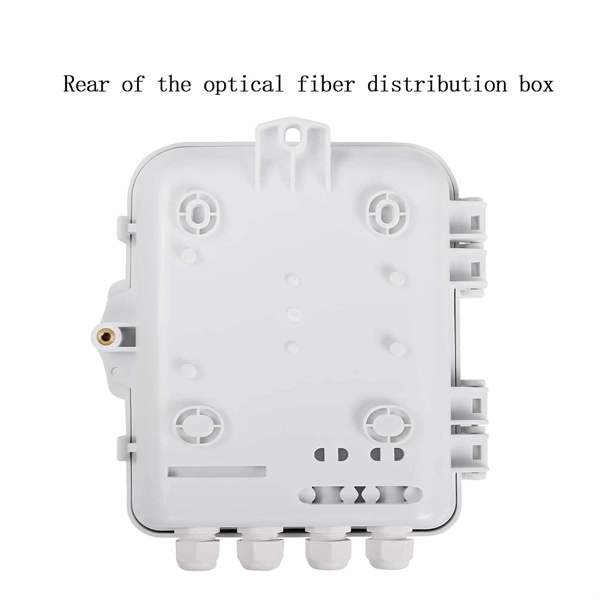

Laying of optical cables in communication equipment rooms

Proper installation of optical fiber cables in a communication equipment room ensures network reliability, safety, and long-term performance.

Pre-

Installation Planning

Before laying cables, plan the cable routes and layout carefully. Identify the locations of racks, patch panels, and termination points, and ensure that pathways are clear of obstacles and comply with building codes and safety regulations. Determine the type of fiber (single-mode or multi-mode) and whether armored or standard cables are required based on environmental conditions.

Prepare all necessary tools, including cable pullers, lubricants, ladders, and cleaning equipment for connectors.

Safety Considerations

Personnel must follow OSHA, NESC, and local safety regulations. Use barricades, warning signs, and personal protective equipment such as gloves, eye protection, and helmets. Avoid standing under cables being pulled, and ensure ladders and scaffolding are stable.

Never look directly into fiber ends carrying laser light, as it can cause serious eye damage.

Cable Handling and Routing

Handle fiber cables carefully to prevent bending, crushing, or excessive pulling, which can degrade performance. Always respect the minimum bend radius specified by the manufacturer. Use cable trays, conduits, or raceways to support cables and prevent pinching or abrasion.

For preconnectorized cables, use pulling grips to isolate connectors from tensile loads. Avoid spinning cables off the spool end and grip the cable by the outer jacket or strength members.

Connector Cleaning and Termination

Clean all fiber connectors before making connections. Even small dust or oil particles can cause signal loss or damage. Use dry click-style cleaners first, and if necessary, a wet-dry cleaning method with high-purity isopropyl alcohol and lint-free wipes.

Inspect both ends with a fiber scope to ensure cleanliness before connecting.

Grounding and Protection

For armored fiber, ensure proper grounding according to local electrical codes to prevent electrical faults and interference. Use support systems to prevent crushing and maintain cable integrity. Armored cables require careful handling despite their protective sheath.

Post-InstallationAfter laying and connecting cables, perform testing and documentation. Verify signal integrity, label cables with color codes, and secure them with cable ties for organized management. Maintain a record of cable routes, splices, and termination points for future maintenance or upgrades.

By following these steps, optical fiber installation in a communication equipment room will be safe, efficient, and reliable, ensuring optimal network performance and longevity.
