Epon fiber optic communication method

EPON (Ethernet Passive Optical Network) is a high-speed fiber-optic network standard that delivers data, voice, and video services using Ethernet over a point-to-multipoint passive optical architecture.

Overview of EPONEPO

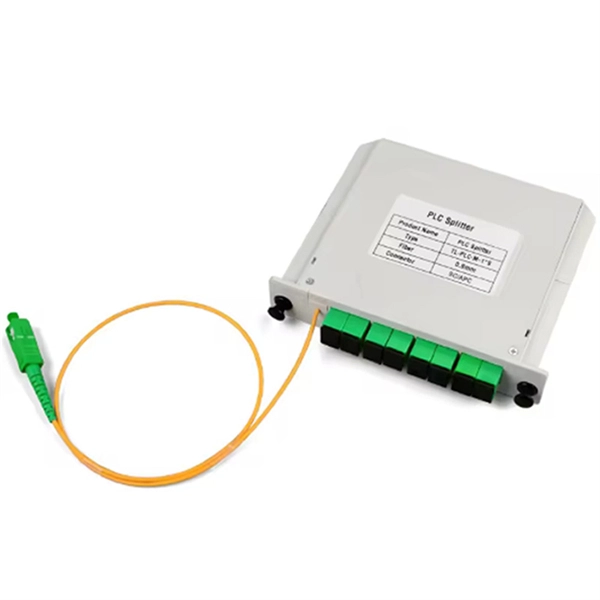

N is a fiber-optic access technology designed to provide cost-effective, scalable broadband connectivity, particularly for Fiber to the Home (FTTH) deployments. It uses passive optical splitters to connect a single Optical Line Terminal (OLT) at the service provider's central office to multiple Optical Network Units (ONUs) at customer premises, forming a point-to-multipoint topology. This passive design reduces the need for active electronics in the field, lowering maintenance costs and energy consumption while improving reliability.

How EPON Works

Downstream Transmission: The OLT broadcasts Ethernet frames to all ONUs.

Each ON

U filters the frames based on its MAC address to accept only the relevant data. Upstream Transmission: ONUs transmit data to the OLT using Time Division Multiple Access (TDMA), ensuring collision-free communication. Wavelength Division Multiplexing (WDM): EPON separates upstream and downstream traffic over a single fiber using different wavelengths, enabling efficient bidirectional communication.

EPO

N ModulesEPON networks rely on EPON modules to facilitate high-speed data transmission. These modules include: OLT Modules: Located at the service provider's end, they manage traffic and connect to multiple ONUs.

ON

U Modules: Located at the user end, they receive and transmit data to the OLT. Transmission Rates: Common modules include 1. 25G EPON for 1.

25 Gbps and 10G EPON for up to 10 Gbps, supporting bandwidth-intensive applications like UHD video streaming and cloud services. Modules perform optical signal modulation/demodulation, protocol conversion, and signal amplification, optimizing network performance and reliability.

Advantages of EPON

High Bandwidth and Symmetry: Supports symmetrical speeds up to 1 Gbps or higher, with 10G EPON modules enabling even faster connections. Energy Efficiency: Passive splitters reduce power consumption and maintenance requirements. Scalability: Point-to-multipoint architecture allows easy expansion to multiple users without additional active devices.

Reliability: Less affected by electromagnetic interference and lightning, resulting in fewer faults.

Cost-

Effectiveness: Integrates multiple services (data, voice, video) over a single fiber, reducing infrastructure costs.

EPO

N vs GPONWhile both EPON and GPON are passive optical networks, EPON is based on Ethernet standards, making it easier to integrate with existing Ethernet infrastructure. Typical differences include: Speed: EPON usually supports 1 Gbps symmetrical, whereas GPON can reach 2. 5 Gbps downstream and 1.

25 Gbps upstream. Deployment: EPON is cost-effective where Ethernet is dominant; GPON is preferred for higher capacity and future scalability. Protocol: EPON uses Ethernet frames; GPON uses ATM or TDM, which can complicate integration with Ethernet networks.

ApplicationsEPON is widely used for: Residential broadband (FTTH)Enterprise networks5G backhaul and smart city infrastructureIPTV, VoIP, and high-speed internet services EPON's combination of high-speed performance, energy efficiency, and scalability makes it a sustainable and versatile solution for modern fiber-optic communication networks.
