Industrial Installation Method for a 4-Port Switch

A 4-port industrial switch can be installed using DIN rail, rack, wall, or desktop mounting, depending on space, environmental conditions, and accessibility requirements. Common Installation Methods1.

DIN Rail Mounting DI

N rail mounting is widely used in industrial environments, especially in electrical cabinets or compact spaces. The switch is clipped onto a metal rail, allowing efficient organization and easy replacement or maintenance. This method is ideal for factory automation, warehouses, and outdoor locations with harsh conditions.

DI

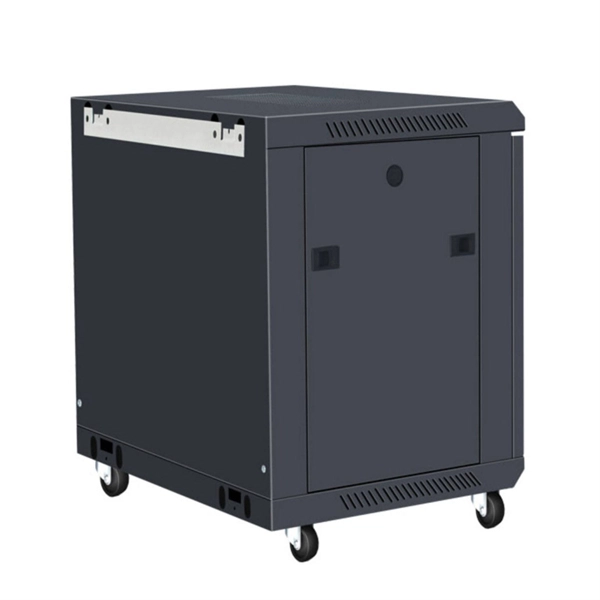

N rail-mounted switches often feature IP-rated protection against dust and moisture, ensuring reliability in extreme temperatures and industrial settings. 2. Rack Mounting Rack mounting is suitable for centralized industrial environments or server rooms.

A 19-inch rack is typically used, and the switch is secured using front and rear mounting brackets and slider rails. Proper alignment ensures stability and allows the chassis to slide in and out for maintenance. Rack-mounted switches benefit from better airflow, scalability, and easier cable management.

Grounding the chassis is essential if the rack is ungrounded. 3. Wall Mounting Wall-mounted installation is useful when the switch needs to be close to connected devices, reducing cable length and signal degradation.

Wall-mounted switches are compact, easy to deploy, and often IP-rated for protection against moisture and dust, making them suitable for outdoor or humid environments. 4. Desktop Installation Desktop placement is the simplest method, suitable for temporary setups, small industrial projects, or laboratory testing.

It requires no tools and allows easy repositioning. However, it exposes the switch to dust, moisture, and vibrations, so it is not recommended for heavy-duty industrial environments. Installation Considerations for a 4-Port Industrial SwitchEnvironmental Conditions: Ensure the switch can withstand ambient temperature, humidity, dust, and vibrations.

Many industrial switches operate from -40°C to 75°C and have IP41 or higher protection. Power Supply: Consider using PoE switches to reduce cabling complexity. Ensure proper grounding if required.

Accessibility: Choose a mounting method that allows easy access for maintenance, monitoring, and cable management. Tools and Configuration: Use manufacturer-provided tools like AXIS IP Utility or Device Manager for setup, password configuration, and network optimization. By selecting the appropriate mounting method and following proper installation procedures, a 4-port industrial switch can operate reliably in harsh industrial environments while maintaining accessibility and network performance.
