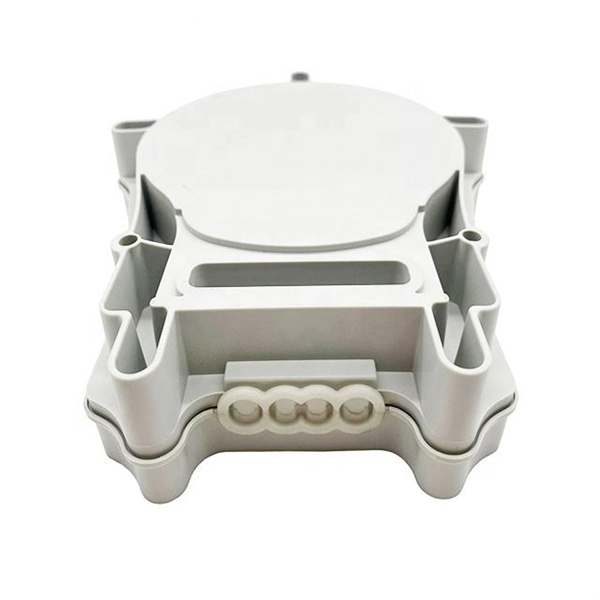

Optimize wiring method for distribution boxes

Fiber and communications infrastructure knowledge brief Published 04 Jun 2026

Use this reference to prepare product questions for BAGYOU FIBRE. Check interfaces, capacity, protection and installation requirements against the current product documentation.

Improving wiring in distribution boxes involves proper layout, secure connections, organized cable management, and adherence to safety standards to enhance reliability and safety.

Proper Layout and Component Placement

Optimizing the internal layout of a distribution box ensures efficient power distribution and reduces maintenance complexity. Place high-power equipment and branch circuits strategically to minimize cable length and power losses. Separate different voltage systems to prevent interference, and ensure that busbars, neutral bars, and grounding bars are easily accessible for maintenance and inspection.

Custom enclosures can provide better flexibility, allowing future expansion and cleaner component placement.

Secure and Correct Connections

All wire connections should be firm and tight, using spring washers or appropriate terminal hardware to prevent loosening. Ensure neutral and protective earth connections are secure, as loose connections can compromise safety and cause the enclosure to become live during faults. Use properly sized conductors and follow torque specifications for all terminals to maintain reliable electrical contact.

Organized Cable Management

Arrange wires neatly in horizontal or vertical runs, maintaining smooth bends with a radius at least six times the wire diameter. Group wires into bundles and tie them securely to prevent tangling and reduce heat buildup. Avoid using jumper wires in place of busbars, and ensure slack is managed to allow future modifications without disrupting existing connections.

Circuit Breaker Configuration

Select the appropriate breaker type for each circuit. Single-pole breakers are suitable for standard lighting circuits, while two-pole breakers provide full isolation for socket circuits or high-power loads. Proper coordination between main breakers, branch breakers, and busbars ensures balanced load distribution and effective fault protection.

Using comb busbars can simplify connections and improve safety. Compliance with StandardsFollow IEC, NEC, or local electrical codes for wiring color codes, grounding, and protection requirements. For three-phase systems, use standard color coding (e.g., Phase A: Yellow, Phase B: Green, Phase C: Red, Neutral: Light Blue, Protective Earth: Yellow/Green bi-color) to avoid confusion and ensure safety.

Verify grounding continuity before energizing the system.

Additional Considerations

Use enclosures with adequate rigidity and ventilation to support heavy components and prevent overheating. Consider lightning protection and short-circuit withstand capability for transformers and critical components. Plan for future expansion by leaving space for additional breakers or automation devices.

By implementing these strategies, distribution boxes can achieve enhanced safety, reduced downtime, and improved operational efficiency, while simplifying maintenance and future upgrades.
