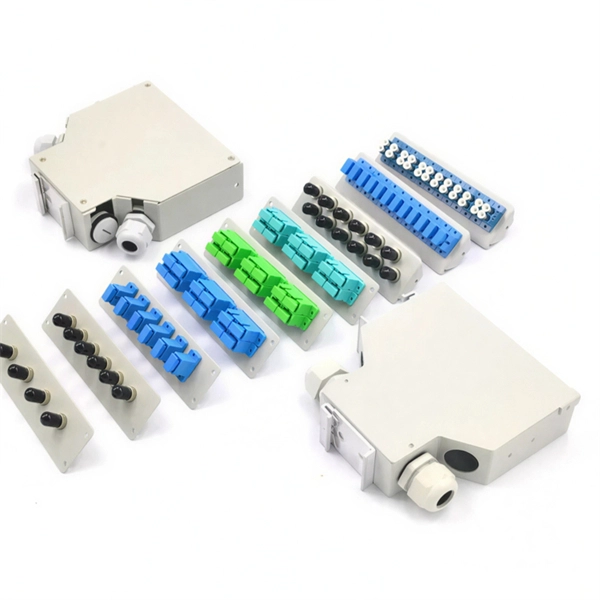

Local Area Network Optical Cable Loss Standards

Fiber and communications infrastructure knowledge brief Published 19 Feb 2026

Use this reference to prepare product questions for BAGYOU FIBRE. Check interfaces, capacity, protection and installation requirements against the current product documentation.

LAN fiber optic cabling must meet specific insertion loss limits defined by TIA, ISO, and FOA standards, typically ranging from 0. 3 dB per connector to 3 dB/km for multimode fiber, depending on wavelength and cable type. Key Standards and GuidelinesTIA-568.

3-E (2022) specifies transmission performance parameters for fiber optic LAN cabling, including maximum allowable insertion loss for multimode and single-mode fibers. For example, a 90-meter multimode link may have a maximum loss of 6. 10 dB at 850 nm and 3.

85 dB at 1300 nm for the cabling alone, excluding the application requirements. The Fiber Optic Association (FOA) provides practical installation standards and loss budget guidance.

FO

A recommends estimating losses for all components—fiber, splices, and connectors—and summing them to calculate the total loss budget. Typical values include 0. 3 dB per connector, 0.

3 dB per multimode mechanical splice, and 0. 15 dB per single-mode fusion splice. Multimode fiber attenuation is approximately 3 dB/km at 850 nm and 1 dB/km at 1300 nm, while single-mode fiber has lower attenuation, allowing longer distances.

Loss Budget Calculation

A loss budget ensures the optical signal remains strong enough for reliable communication. It accounts for: Fiber attenuation (dB/km)Connector losses (0. 3–0.

75 dB depending on type)Splice losses (0. 15–0. 3 dB)Patch cords and terminations For example, a 1,500-meter multimode link with two splices and connectors at each end may have a calculated maximum insertion loss of 6.

10 dB at 850 nm and 3. 85 dB at 1300 nm.

Practical Considerations

Multimode vs. Single-mode: Single-mode fiber supports longer distances and higher bandwidth due to lower attenuation and reduced modal dispersion. Testing: Use an Optical Loss Test Set (OLTS) or optical power meter to verify that measured loss does not exceed the calculated budget.

Application Requirements: Some high-speed Ethernet applications (e.g., 10GBase-LX4) have stricter loss limits, often 2 dB maximum, which may restrict maximum link length. SummaryLAN optical cable loss standards are defined by TIA, ISO, and FOA, with typical limits including: Connector loss: 0. 3 dB (mechanical) to 0.

75 dB (MPO or prepolished connectors)Splice loss: 0. 15 dB (fusion) to 0. 3 dB (mechanical)Fiber attenuation: 3 dB/km at 850 nm, 1 dB/km at 1300 nm for multimode; lower for single-modeMaximum link loss: Calculated via a loss budget to ensure reliable LAN operation Following these standards ensures that LAN fiber optic links maintain signal integrity and support the intended network speeds and distances.
