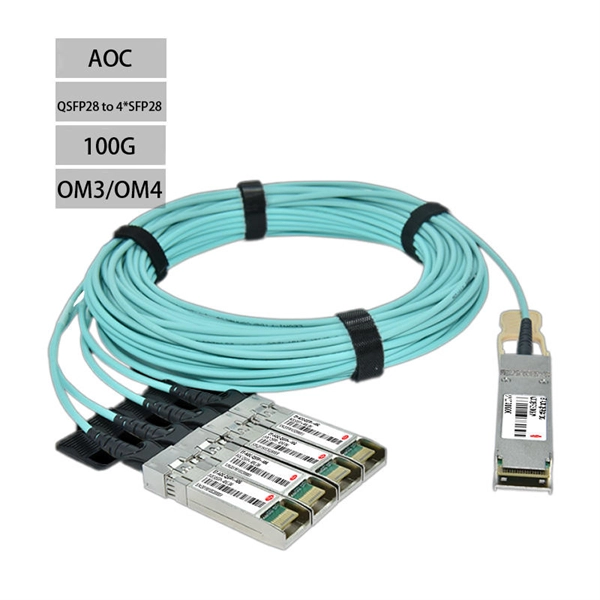

Fiber Optic Couplers and Patch Cords

Fiber optic patch cords connect optical devices, while fiber optic couplers split or combine optical signals, both essential for high-performance fiber networks.

Fiber Optic Patch Cords

Definition and Function: A fiber optic patch cord, also called a fiber jumper or fiber patch cable, is a short section of optical fiber with connectors on both ends, designed for flexible, short-distance interconnections within an optical network. They connect devices such as servers, switches, patch panels, optical distribution frames (ODFs), and customer premise equipment in FTTH setups ( ). Types of Fiber: Single-mode (SM, OS1/OS2): Supports long-distance transmission with a small core, ideal for telecom and enterprise backbones ( ).

Multimode (MM, OM1–OM5): Supports multiple light paths, suitable for short-distance applications like data centers and LANs ( ). Connector Types: LC: Small form factor, high-density, common in data centers.

S

C: Larger, easy to handle, widely used in FTTH and CATV.

S

T: Bayonet mount, used in legacy networks. MTP/MPO: Multi-fiber connectors for high-density applications ( ). Construction Features: Kevlar/Aramid yarn: Provides tensile strength and durability.

Jacket materials: PVC, LSZH, OFNR, or outdoor-rated for environmental protection. Simplex vs. Duplex: Simplex carries one fiber (one-way), duplex carries two fibers (two-way, Tx/Rx) ( ).

Applications: Intra-rack and inter-rack connections in data centers. Cross-connects in main distribution areas.

FTT

H and building entry connections. Test and measurement setups for OTDRs and power meters ( ). Performance Considerations: High-quality patch cords offer low insertion loss and low return loss, ensuring reliable signal transmission and minimal degradation over repeated mating cycles ( ).

Fiber Optic Couplers

Definition and Function: A fiber optic coupler is a passive device that splits or combines optical signals between fibers. It allows one input signal to be distributed to multiple outputs or multiple inputs to be combined into a single output. Couplers are essential in applications like PON networks, signal monitoring, and optical testing.

Types of Couplers: Fused Biconical Taper (FBT): Common for multimode fibers, cost-effective for short distances. Planar Lightwave Circuit (PLC): Provides uniform splitting ratios, suitable for single-mode fibers and high-density networks. Wavelength Division Multiplexing (WDM) Couplers: Combine or separate signals of different wavelengths for efficient bandwidth utilization.

Applications: Splitting signals in FTTH networks to serve multiple subscribers. Combining signals in optical monitoring or testing setups. Load balancing and redundancy in optical communication systems.

Integration with Patch Cords: Patch cords are used to connect devices to couplers, enabling flexible network configurations and easy maintenance. High-quality patch cords ensure minimal signal loss when interfacing with couplers ( ).

Summary

Fiber optic patch cords and couplers are critical components in optical networks. Patch cords provide flexible, reliable connections between devices, while couplers manage signal distribution and combination. Selecting the right fiber type, connector, and jacket material, along with ensuring low insertion and return loss, is essential for optimal network performance and scalability ( ).
