Fiber Optic Cable Fusion Splicer Instrument Functions

Fiber optic fusion splicers join two optical fibers end-to-end using heat, creating a permanent, low-loss connection that ensures high-quality signal transmission.

Core Function

A fusion splicer is a specialized device designed to align and fuse the ends of two optical fibers using an electric arc or controlled heat, forming a continuous optical path with minimal signal loss and back reflection. This permanent bond is critical for maintaining high-speed data transmission over long distances, as it preserves signal strength and integrity.

How Fusion Splicers Work

Fiber Preparation: The protective coating is stripped from the fiber ends, and the fibers are cleaned and cleaved to create smooth, flat surfaces. Alignment: Advanced imaging systems and precision motors align the fiber cores or cladding, depending on the splicer type, ensuring optimal light transmission. Fusion: An electric arc melts the fiber ends, fusing them into a single continuous fiber.

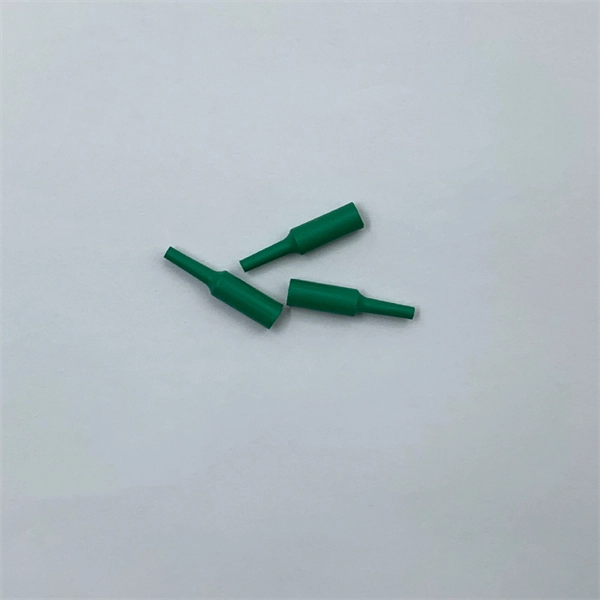

Protection: A protective sleeve is applied over the splice to safeguard the joint from mechanical stress and environmental factors.

Benefits

Low Insertion Loss: Fusion splicing typically achieves losses as low as 0. 01–0. 02 dB for single-mode fibers, making it ideal for long-haul networks and high-bandwidth applications.

High Return Loss: Minimal light is reflected back toward the source, reducing signal degradation. Durability: Unlike mechanical splices, fusion splices create a permanent bond that is resistant to environmental stress and mechanical failure. Versatility: Fusion splicers can handle single-mode, multi-mode, and specialty fibers, and ribbon splicers can join multiple fibers simultaneously for large-scale deployments.

Applications

Fusion splicers are widely used in telecommunications, data centers, FTTH (Fiber to the Home) networks, and long-distance optical networks, where maintaining high-quality, reliable connections is essential. They are also critical in scenarios requiring low-loss, high-speed data transmission and in environments where network reliability is paramount. In summary, fiber optic fusion splicers are essential tools for creating precise, durable, and low-loss fiber connections, ensuring optimal performance and reliability in modern optical networks.
