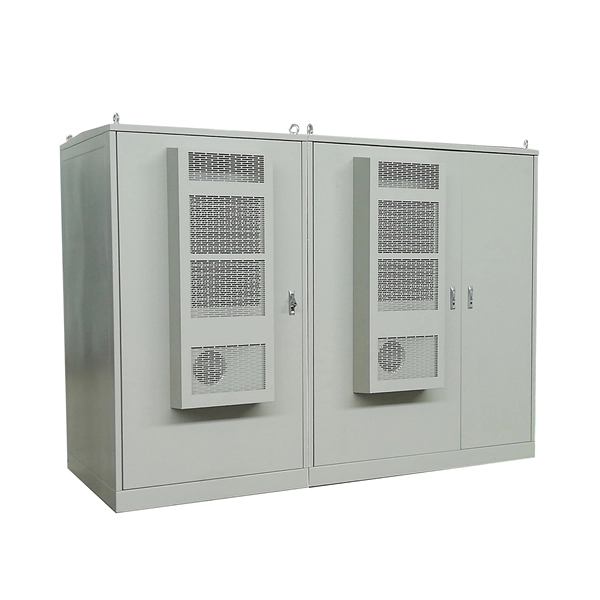

Photovoltaic distribution box for photovoltaic grid connection

PV grid-connected boxes and distribution boxes are essential enclosures that manage, protect, and safely connect solar power systems to the utility grid.

PV Grid-

Connected Box

A PV grid-connected box, also called an AC combiner box or grid-tie distribution box, operates on the AC side after the inverter. Its main functions include: Overcurrent protection to prevent damage to inverters and wiringSurge suppression to guard against lightning or voltage spikesIsolation and maintenance disconnection, allowing safe service without accessing each inverterEnergy metering for monitoring power output and compliance with utility regulations These boxes are required for commercial and industrial solar installations to meet safety codes such as IEC 60364-7-712 and NEC Article 690. They often include a visible lockable disconnect switch mandated by utilities and are designed for both single-phase and three-phase systems with weatherproof enclosures (IP65) for outdoor use.

P

V Combiner Box (DC Side)A DC combiner box collects the DC output from multiple solar panel strings and routes it to the inverter. Key features include: DC fuses or MCBs for each stringType 2 DC surge protective devices (SPD)DC isolator switch for safe disconnectionPE ground bar and busbars for organized wiring This box simplifies installation by consolidating multiple string connections, reducing cable clutter, and providing a centralized protection hub. It is essential when a PV system has three or more strings connected in parallel.

PV Distribution Box

A P

V distribution box is a broader enclosure that houses and protects system components such as inverters, combiners, and disconnect switches. Its benefits include: Protection from environmental factors like rain, dust, and UV exposureEnhanced system efficiency by ensuring proper operation of all componentsExtended system lifespan through safeguarding against electrical faultsEase of installation and maintenance with pre-drilled mounting holes and clear wiring diagrams Examples like the MDX-200 PV Grid-Connected Distribution Box include surge protectors, knife switches, and miniature circuit breakers, suitable for residential to industrial systems ranging from 8 to 50 kW.

Key DifferencesFeatureDC Combiner BoxAC/Grid-Connected BoxDistribution BoxVoltage TypeDC (from PV panels)AC (from inverters)AC or DC, houses multiple componentsMain FunctionCombine strings, protect DC circuitsAggregate inverter outputs, protect AC circuitsProtect and organize system components, facilitate maintenanceComponentsFuses, DC SPD, isolator, busbarsAC breakers, surge protection, disconnect switchInverters, combiners, breakers, surge protection, groundingInstallation PointBetween PV array and inverterBetween inverter and gridCentralized system hub for protection and distributionSummaryIn a solar PV system, the DC combiner box manages raw panel outputs, the AC/grid-connected box safely connects inverter outputs to the utility grid, and the distribution box provides overall protection and organization for system components.

Proper selection and installation of these boxes are critical for safety, code compliance, and system performance.
