Fiber Optic Communication Devices and Modules

Fiber optic communication devices and modules are essential components that enable high-speed, high-capacity data transmission by converting electrical signals to optical signals and vice versa.

Key Components

Optical Modules: These are pluggable photoelectric conversion units designed to be inserted into network equipment like switches and routers. They consist of a TOSA (Transmitting Optical Sub-Assembly), which converts electrical signals into optical signals, and a ROSA (Receiving Optical Sub-Assembly), which converts optical signals back into electrical signals.

ROS

A includes a photodetector (PIN or avalanche photodiode), a trans-impedance amplifier (TIA), and a post amplifier to ensure signal integrity and digital conversion. Fiber Optic Transceivers: Unlike optical modules, transceivers are independent devices with their own power supply and housing. They perform photoelectric conversion and data transmission autonomously and can be deployed on desktops, racks, or network cabinets.

Transceivers often integrate network management features such as link status monitoring and adaptive rate support. Connectors and Interfaces: Optical modules and transceivers connect to fiber optic cables via single-mode or multi-mode connectors. Gold-finger interfaces in modules ensure precise insertion into network equipment, while transceivers provide flexible optical and electrical ports for diverse network setups.

Performance and Monitoring

Digital Diagnostic Monitoring (DDM): Modern optical modules support real-time monitoring of operating voltage, temperature, transmitted and received optical power, and laser bias current. This ensures reliable operation and interoperability across different vendors. Specifications: Modules and transceivers vary in transmission distance (from meters to hundreds of kilometers), data rates (1G to 800G and beyond), and wavelengths (e.g., 1547.

72 nm for next-generation coherent communication). High-performance modules are optimized for low power consumption, miniaturization, and heat dissipation.

Applications

Fiber optic devices are widely used in: Data Centers: High-speed interconnects for servers and storage systems.

FTT

H (Fiber to the Home): Delivering broadband to residential users. Mobile Networks: Base transceiver stations for 5G and beyond. Enterprise Networks: High-bandwidth connections between switches, routers, and network appliances.

Supporting Hardware

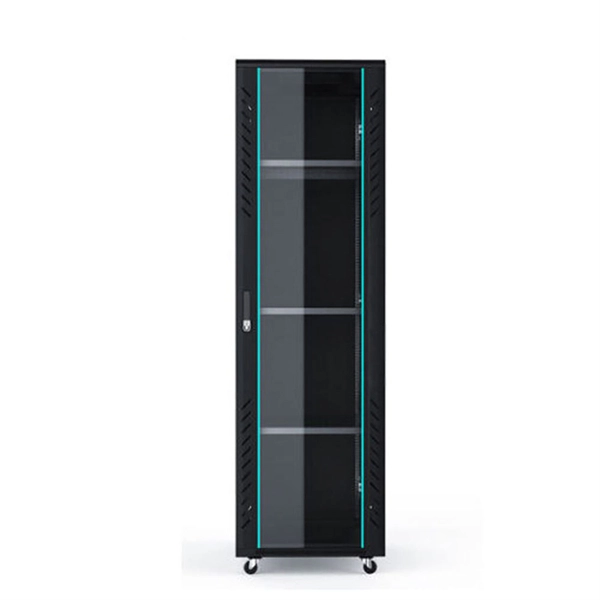

Structured cabling components such as racks, panels, splice trays, and Ethernet fiber switches complement optical modules and transceivers, providing organized, scalable, and reliable network infrastructure.

Summary

In essence, fiber optic communication devices and modules form the backbone of modern high-speed networks. Optical modules focus on efficient photoelectric conversion within network equipment, while transceivers provide standalone, flexible solutions. Together with connectors, monitoring systems, and supporting hardware, they enable robust, high-capacity, and low-latency optical communication across data centers, telecom networks, and enterprise environments.
