Correspondence between pigtails and jumpers

Fiber and communications infrastructure knowledge brief Published 30 Nov 2022

Use this reference to prepare product questions for BAGYOU FIBRE. Check interfaces, capacity, protection and installation requirements against the current product documentation.

Fiber optic jumpers (patch cords) and pigtails are complementary components: jumpers have connectors on both ends, while pigtails have a connector on one end and a bare fiber on the other, allowing them to be fusion-spliced to network cables.

Key Differences

Connectors: Jumpers have connectors on both ends for direct plug-and-play connections, whereas pigtails have a connector on one end and a bare fiber on the other for fusion splicing to optical cables or fibers inside distribution boxes. Structure: Jumpers are fully protected with a thicker sheath, suitable for flexible interconnections between devices. Pigtails are shorter fibers designed for permanent splicing and are typically used in optical distribution frames or splice boxes.

Usage: Jumpers are used for device-to-device connections, such as between transceivers and patch panels. Pigtails are used to create clean, low-loss interfaces at distribution points, where the bare fiber is spliced to the main optical cable.

Correspondence and Relationship

Conversion: A single jumper can be cut into two pigtails, demonstrating their functional correspondence. Integration: In a typical optical network, bare fibers are first spliced to pigtails inside an optical distribution frame (ODF) or terminal box. Jumpers are then used to connect the pigtail connectors to network devices, providing a flexible and serviceable front-end interface.

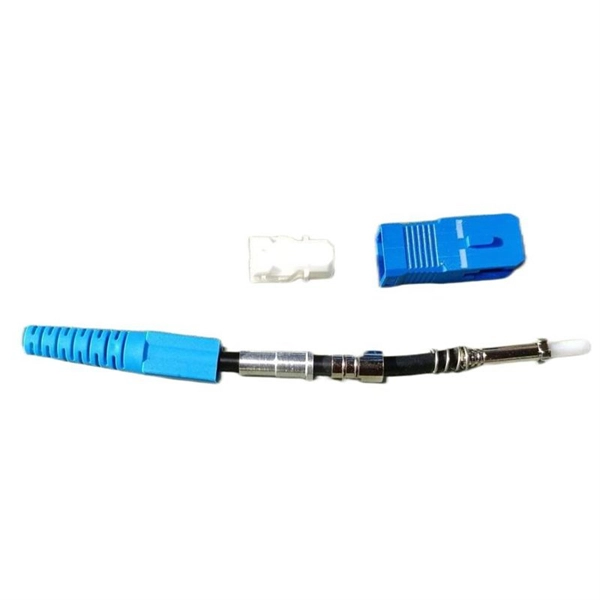

Connector Types: Both pigtails and jumpers use standard connectors such as LC, SC, and ST. The choice depends on the network equipment and space constraints.

Practical Implications

Network Design: Using pigtails for splicing and jumpers for patching ensures minimal signal loss, easier maintenance, and faster reconfiguration of optical networks. Distance and Mode: Both single-mode (yellow sheath) and multi-mode (orange or blue sheath) fibers are available for pigtails and jumpers, with single-mode suitable for long-distance transmission and multi-mode for short-distance connections. In summary, pigtails and jumpers work together in optical networks: pigtails provide permanent, low-loss spliced connections to the main fiber, while jumpers offer flexible, reconfigurable connections to devices, ensuring efficient and reliable network operation.
