Distribution boxes and wires and cables

Fiber and communications infrastructure knowledge brief Published 02 Oct 2024

Use this reference to prepare product questions for BAGYOU FIBRE. Check interfaces, capacity, protection and installation requirements against the current product documentation.

Distribution boxes safely manage and distribute electrical power, while wires and cables connect circuits and devices, forming the backbone of any electrical system.

Wires and Cables

Wires and cables are conductors that carry electrical current from the power source to devices, appliances, and distribution points. They vary by: Material: Copper (high conductivity) or aluminum (lightweight, cost-effective)Insulation: PVC, XLPE, or rubber for protection against heat, moisture, and mechanical damageType: Single-core, multi-core, flexible, armored, or specialty cables for industrial, commercial, or residential useVoltage Rating: Low, medium, or high voltage depending on applicationStandards: Must comply with local electrical codes and standards for safety and performance Proper selection ensures efficient power delivery, minimal energy loss, and safety.

Specialty distributors can assist in choosing the right cable type for specific projects, including commercial construction or industrial installations.

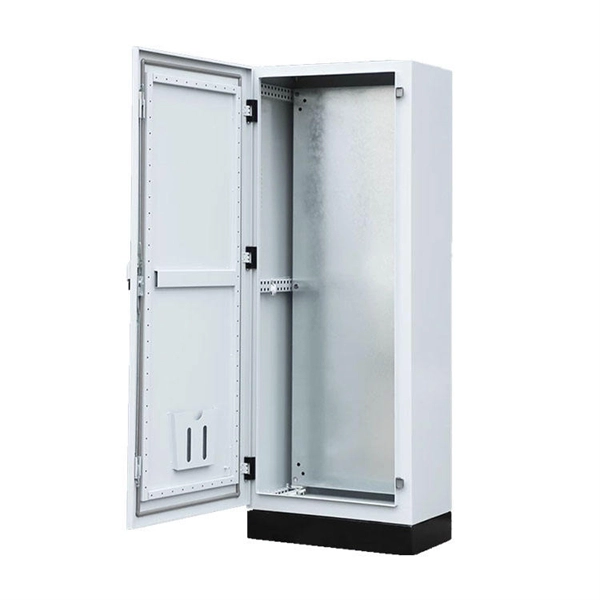

Distribution Boxes

A distribution box (DB box) is a low-voltage enclosure that receives incoming power and distributes it to multiple outgoing circuits safely. Key features include: Protective Devices: Circuit breakers (MCBs), residual current devices (RCDs), fuses, surge protective devices (SPDs), and isolatorsInternal Components: Phase busbars, neutral bars, earth bars, DIN rails, and cable entry pointsTypes: Surface-mounted, flush-mounted, pole-mounted, single-phase, three-phase, lighting, power, and control distribution boxes Applications: Residential, commercial, industrial, outdoor, temporary power, solar, or machinery setupsSelection CriteriaChoosing the right distribution box involves considering: Application and load: Residential vs industrial, current requirements, and future expansionSupply system: Single-phase, three-phase, AC, DC, and earthing type (TN, TT, IT)Protection strategy: Appropriate combination of MCBs, RCDs, RCBOs, fuses, and SPDsEnclosure protection: IP or NEMA rating, material durability, UV and corrosion resistance, and impact protectionCompliance: IEC, UL/NEC, BS, or local electrical codes Installation ConsiderationsProper installation ensures safety and reliability: Placement: Dry, accessible areas with good ventilation, typically around 1.

5 meters heightWiring: Correct wire gauge, secure grounding, neat cable management, and proper insulationProtection: Each circuit should have its own breaker or fuse, with surge protection where neededMaintenance: Label circuits, perform visual inspections, multimeter tests, and schedule regular checks for long-term reliability SummaryWires and cables form the physical connections for electricity, while distribution boxes organize, protect, and distribute power safely to multiple circuits. Selecting the right components, following standards, and ensuring proper installation are critical for electrical safety, efficiency, and long-term system performance.
