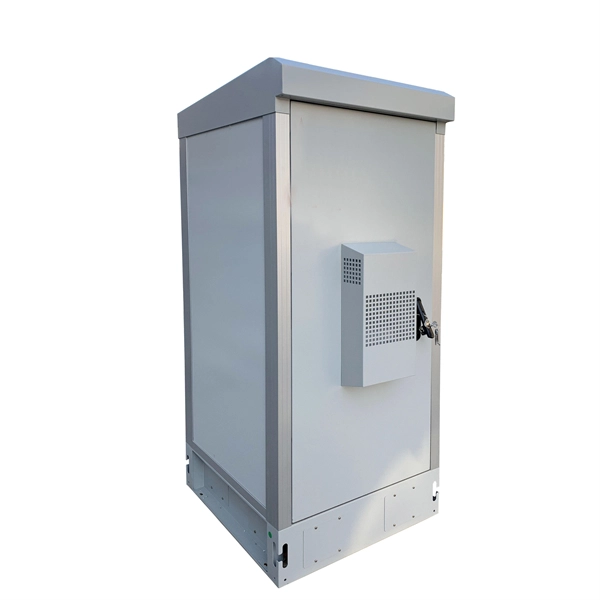

Grounding of the distribution box door

The metal door of a distribution box must be grounded to ensure safety, prevent electric shock, and comply with electrical codes.

Why Ground the Door

Even if the distribution box body is already grounded, the door itself can accumulate static charge or become live if an internal fault occurs. Grounding the door ensures that any stray voltage is safely conducted to earth, protecting personnel from electric shock and maintaining compliance with NEC 250. 148 and IEC standards.

Ungrounded doors can pose serious hazards in industrial or high-voltage environments.

How to Ground the Door

Bonding to the Panel Body: Connect the door to the grounded panel body using a metallic conductor, typically a green or green-yellow striped wire. Ensure the wire is neither too tight nor too loose to allow free door movement. Connection Points: Use dedicated grounding terminals or bolts on the door and box body.

These are often pre-fabricated and marked with grounding symbols for easy identification. Flexible Conductors: Braided copper tape or flexible copper wire is recommended to maintain a reliable connection while allowing door movement. Surface Preparation: Remove paint or oxide layers at connection points to ensure low-resistance contact.

Anti-loosening or serrated washers can help maintain continuity over time. Resistance Check: After installation, measure the resistance between the door and the main grounding point. It should be very low, typically less than 1 ohm, to ensure effective grounding.

Standards and Best PracticesNEC 250. 148: Requires all metallic parts of electrical boxes, including doors, to be bonded to ground.

IE

C Guidelines: Emphasize bonding non-current-carrying parts to the earth to maintain equal potential and prevent shock. Star Grounding Design: Avoid daisy-chaining multiple doors or components. Each door should have a direct connection to the main grounding bar to prevent a single point of failure.

Wire Sizing: Use appropriate wire gauge according to local standards (e.g., 10 AWG in the US or 6 mm² elsewhere) to handle potential fault currents.

Practical Tips

Apply conductive grease on stainless steel connections to reduce corrosion and maintain low resistance. Ensure all metallic components inside the enclosure, including backpanels and DIN rails, are properly bonded to the main ground. Regularly inspect grounding connections for tightness and corrosion, especially in outdoor or industrial environments.

Proper grounding of the distribution box door is essential for safety, code compliance, and reliable operation of electrical systems. Following these guidelines ensures that the door is at the same potential as the grounded enclosure, preventing shocks and maintaining system integrity.
