How to fix the cable tray in a closed loop

To fix a cable tray in a closed loop, ensure proper alignment, secure connections, adequate support spacing, and use appropriate accessories to maintain stability and safety.

Planning and Route Alignment

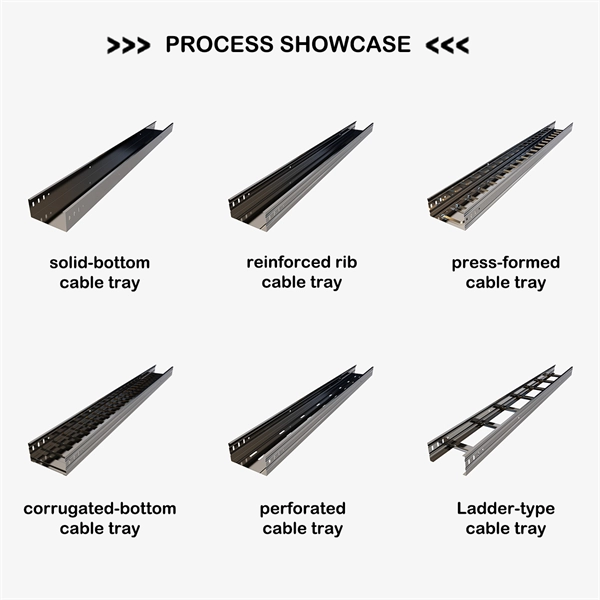

Before installation, plan the closed-loop route carefully, marking the path and considering clearance, load capacity, and cable separation requirements. Ensure the loop avoids sharp bends and obstacles, and that the tray type matches the environment and cable load (e.g., ladder, perforated, or solid-bottom trays) to allow proper airflow and support.

Securing Connections

Use splice plates, nuts and bolts, or quick-connect systems to join tray sections securely. For closed loops, ensure that the final connection completes the loop without misalignment or gaps. Proper torque control is critical to prevent loosening due to vibration.

L, T, or cross-shaped plates may be used for junctions or corners in the loop.

Support and Load Management

Install supports, brackets, or hangers at recommended intervals (typically 1. 5–3 meters depending on tray type and load) to prevent sagging and deflection. For closed loops, check that supports are evenly distributed around the loop to maintain structural integrity and avoid tension at joints.

Consider vibration-isolating supports if the loop is near machinery.

Cable Organization and Safety

Use cable organizers, dividers, and separators to prevent tangling and overheating, especially in densely packed loops. Ensure proper separation between high-voltage and signal cables to reduce interference and fire hazards. Edge protectors or trays with rolled edges help prevent insulation damage.

Material and Corrosion Considerations

Select corrosion-resistant materials such as stainless steel, galvanized steel, or FRP depending on environmental conditions. Apply protective coatings if necessary to extend tray lifespan and maintain load-bearing capacity.

Inspection and Maintenance

After installation, inspect all joints, supports, and fasteners to ensure stability. Regular maintenance should include tightening loose bolts, checking for corrosion, and replacing any damaged sections to prevent failures. For closed loops, verify that the loop remains level and aligned to avoid stress on cables and tray sections.

By following these steps—careful planning, secure connections, proper support, cable organization, and regular maintenance—you can ensure a safe, stable, and durable closed-loop cable tray system.
