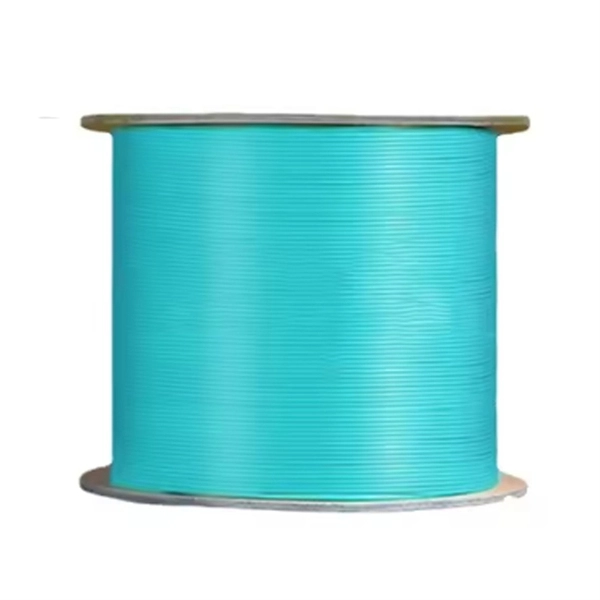

Fiber Optic Cable Piece Counting

Fiber optic cable piece counting involves determining the number of individual fibers in a cable, selecting the appropriate fiber count for your network, and using tools or inspection methods to verify the count.

Understanding Fiber Counts

Fiber optic cables are composed of multiple optical fibers, each capable of transmitting data via light. The fiber count refers to the number of individual fibers within a cable, which can range from as few as 2 fibers to over 3,000 fibers in high-density cables. Standard fiber counts are often grouped in multiples for easier management and compatibility with connectors and modular systems: Low-count cables: 2, 4, 6, 12 fibers, suitable for duplex connections or small office/campus links.

Medium-count cables: 24, 48, 72 fibers, commonly used in enterprise backbones or data centers. High-count cables: 144, 288, 432, 864+ fibers, used in metropolitan or carrier backbone networks. MPO/MTP trunk formats: 8, 12, 24, or 48 fibers per array to match modular optics.

Methods for Counting Fibers

Visual Inspection: For small cables, fibers can be counted manually by examining the cable cross-section or subunits. Specialized Tools: Devices like Optical Time-Domain Reflectometers (OTDRs) or fiber optic testers can detect and verify the number of fibers, even in complex or long cables. Mathematical Calculation: For large or structured cables, fiber count can be estimated based on the cable's design, including the number of subunits, fibers per subunit, and protective layers.

Practical Considerations

Plan for Growth: Always include spare fibers for future expansion, testing, or recovery. For example, a 12-fiber subunit may reserve a few strands for growth without overcrowding the patch field. Cable Type and Application: Choose fiber counts based on the network's current and projected needs, link speeds, and whether point-to-point or multiplexed connections (DWDM) are used.

Handling and Accuracy: Fiber damage or improper handling can affect counting accuracy. Use proper installation and maintenance procedures to ensure reliable results.

Summary

Fiber optic cable piece counting is essential for network planning, installation, and maintenance. By understanding standard fiber counts, using appropriate counting methods, and planning for future growth, you can ensure accurate fiber management and efficient network performance.
