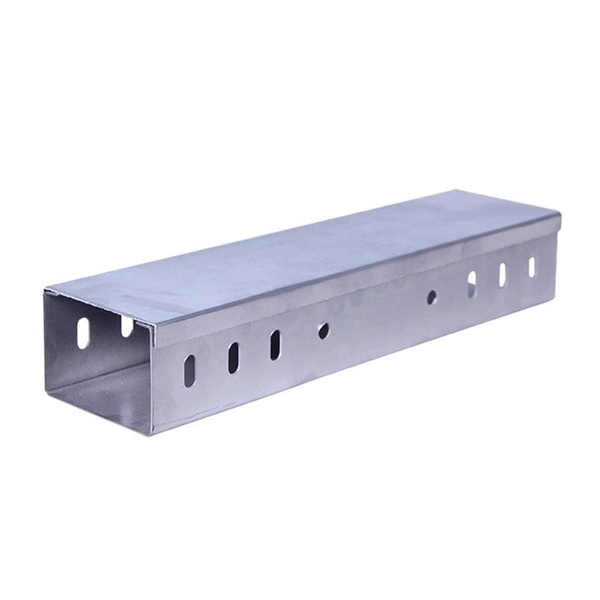

Method for Grinding Cable Tray Bends

Cable tray bending involves shaping trays to navigate corners or obstacles, while grinding ensures smooth edges and proper fit for safe cable installation.

Manual Bending Process

For smaller or custom bends, cable trays can be bent manually using tools such as a manual bender, press brake, or angle grinder. The general steps include: Marking the Bend: Determine the required angle (commonly 45° or 90°) and mark the tray's centerline and sides. Divide the curve into equal segments to maintain a smooth radius ( ).

Cutting Side Walls: Cut triangular or rectangular sections on the tray's side walls to allow folding without deforming the tray. Forming the Bend: Gradually bend each segment using a manual bender or press brake, ensuring uniform curvature. Rejoining Side Walls: After bending, rejoin the cut sections using welding, bolting, or riveting to reinforce the tray.

Grinding: Smooth any sharp edges or weld seams with an angle grinder to prevent cable damage and ensure safety ( ).

Machine-

Assisted Bending

For industrial-scale production or high-precision requirements, cable tray bending machines are used. These machines offer: Consistent accuracy and smooth edges for various tray types, including perforated and ladder trays ( ). Adjustable feeding width, bending thickness, and angle range to accommodate different tray specifications ( ).

Automated operation with PLC control, reducing labor and improving productivity. Durable construction with minimal vibration, ensuring long-term reliability and reduced material waste ( ). Machine bending is ideal for large projects or when multiple identical bends are required, providing efficiency and uniformity that manual methods cannot match.

Material Considerations

Cable trays are commonly made from galvanized steel, stainless steel, aluminum, or fiberglass composites. The material affects bending and grinding: Galvanized steel: Requires careful grinding to avoid removing protective coating. Aluminum: Softer, easier to bend but prone to scratches during grinding.

Fiberglass (FRP/GRP): Requires specialized cutting and finishing tools to prevent cracking ( ).

Safety and Best Practices

Always wear protective gloves, goggles, and hearing protection during cutting, bending, and grinding. Ensure secure clamping of the tray to prevent slipping. Maintain even bending to avoid tray deformation and ensure proper cable support.

Smooth all edges after bending to prevent cable insulation damage. By combining proper marking, bending techniques, and grinding, cable trays can be safely and efficiently shaped to fit complex routing paths while maintaining structural integrity and cable protection.
