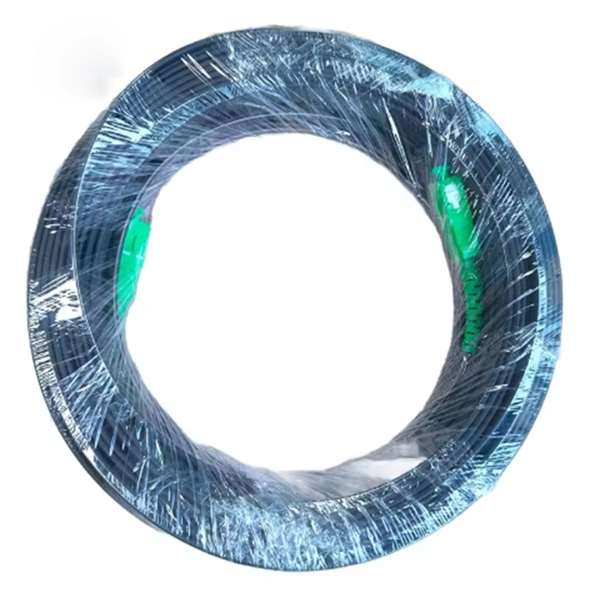

New Zealand ODM Bend-Insensitive Fiber Optic Cable 4 Cores

A 4-core bend-insensitive fiber optic cable is designed to maintain signal integrity even when bent sharply, ideal for high-density or space-constrained installations.

Bend-

Insensitive Fiber TechnologyBend-insensitive fiber (BIF) is engineered to reduce light loss caused by tight bends or stress on the cable. This is achieved by adding a trench or annular ring of lower refractive index glass around the core, which reflects light that would otherwise escape into the cladding back into the core, preserving signal strength. Both single-mode (SMF) and multimode (MMF) fibers are available in bend-insensitive designs, with single-mode fibers commonly used for long-distance or high-speed connections and multimode fibers for shorter, high-bandwidth applications.

Standards and ComplianceBend-insensitive fibers typically comply with ITU-T G. 657 standards, which define two main categories: Category A: Fully compatible with ITU-T G. 652 single-mode fibers, suitable for general transport, datacenter, and access networks.

Category B: Optimized for very low bend radii, ideal for access networks and indoor installations where space is limited. These fibers are also designed to meet TIA-568. 3-E guidelines, ensuring minimum bend radii as low as 7.

5 mm in installed conditions for single-mode fibers, with slightly larger radii under tension during installation.

Practical Advantages

Reduced bending losses: Maintains signal integrity even in tight corners, around doors, or inside ceiling and floor moldings. Flexible installation: Ideal for high-density environments such as data centers, telecom offices, and residential buildings. Durability: More tolerant to handling and installation stress, reducing the risk of signal degradation over time.

Spectrum coverage: Effective across the full fiber spectrum, including longer wavelengths (1625 nm and above), minimizing macro- and microbend losses. 4-Core Cable ConsiderationsA 4-core configuration provides four individual fibers within a single cable sheath, allowing multiple connections or redundancy in a compact form factor. This is particularly useful for: Small-scale access networksResidential or office fiber-to-the-home (FTTH) deploymentsShort-distance backbone connections where space is limited When selecting a New Zealand ODM 4-core bend-insensitive fiber optic cable, ensure the product specifies ITU-T G.

657 compliance, the fiber type (single-mode or multimode), and the minimum bend radius to match your installation requirements.
