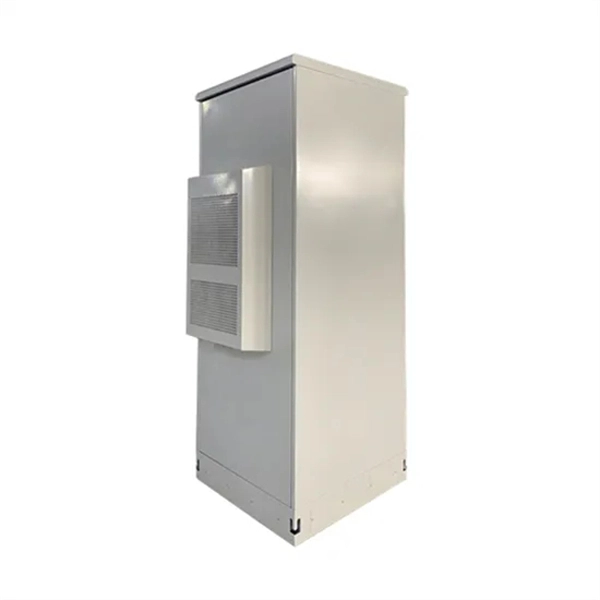

How should network server racks be arranged

Arrange server racks with heavier equipment at the bottom, ensure proper airflow, and implement structured cable management for efficiency, safety, and scalability.

Planning Your Rack Layout

Before installing any equipment, plan the rack layout carefully. List all devices such as servers, switches, patch panels, and storage units, and determine which need frequent access versus those that are rarely adjusted. Heavier devices, like UPS systems or large storage units, should be placed at the bottom to maintain stability, while lighter or frequently accessed equipment can go higher.

Consider future expansion to avoid unnecessary relocation later.

Cable Management

Effective cable management is critical to prevent tangling, reduce maintenance errors, and improve airflow. Use patch panels to centralize connections, and employ Velcro straps, cable trays, and color-coded labeling to organize cables. Avoid plugging cables directly into switches without patching, as this can damage ports and complicate troubleshooting.

Airflow and Cooling

Proper airflow is essential to prevent overheating. Arrange equipment to allow unobstructed air circulation, typically with front-to-back airflow. Place heat-generating devices where air can flow freely, and maintain adequate spacing between racks—generally at least 4 inches for small setups and 48 inches in larger data centers.

Ensure the server room has temperature-controlled ventilation.

Accessibility and Maintenance

Ensure easy access to all equipment for maintenance and upgrades. Leave sufficient space around racks for technicians to work comfortably, and label all devices and cables clearly for quick identification. Regularly inspect and maintain the rack to prevent clutter and maintain efficiency.

Security and Safety

Place racks in a secure, controlled environment with restricted access. Use locks on racks if necessary, and ensure that heavy equipment is properly secured to prevent tipping. Follow standard rack dimensions (EIA-310) to ensure compatibility with your servers and accessories.

Summary

A well-arranged server rack maximizes performance, reliability, and scalability. Key principles include: Heavier equipment at the bottom for stabilityStructured cable management with patch panels and labelingOptimized airflow and coolingAdequate spacing for accessibility and maintenancePlanning for future expansion and security considerations Following these best practices ensures a safe, efficient, and maintainable network server environment.
