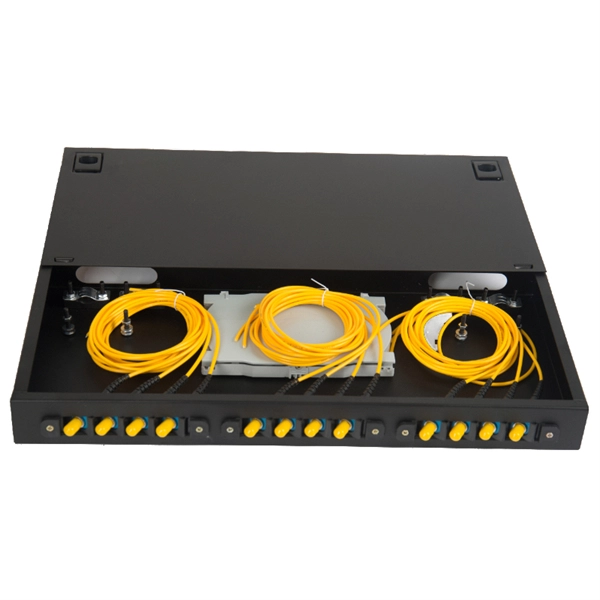

Flowchart of Fiber Optic Cabling Process in Computer Room

The fiber optic cabling process in a computer room follows a structured workflow from design and planning to installation, testing, and documentation. 1.

Planning and Design

Determine network requirements: Identify the type of communication systems, bandwidth needs, and future scalability ( ). Site survey: Assess the computer room layout, rack locations, pathways, and potential obstacles. Select fiber type: Choose between single-mode or multimode fiber based on distance and bandwidth requirements ( ).

Logical and physical design: Create diagrams showing the logical flow of data and physical cable routes ( ). 2.

Component Selection

Cables and connectors: Select appropriate fiber optic cables, connectors, patch panels, and media converters ( ). Racks and enclosures: Determine the placement of fiber distribution panels and cable management systems. Testing equipment: Prepare optical power meters, OTDRs, and visual fault locators for verification.

3.

Installation

Cable routing: Run fiber cables through designated pathways, trays, or conduits while avoiding sharp bends and stress points ( ). Termination: Terminate fibers with connectors at patch panels or network devices. Labeling: Clearly label each fiber for identification and future maintenance.

4.

Testing and Verification

Continuity testing: Verify that each fiber is properly connected end-to-end. Optical loss testing: Measure insertion loss and return loss to ensure signal quality ( ).

OTD

R testing: Identify faults, splices, or bends along the fiber path. 5.

Documentation

Network diagrams: Update logical and physical diagrams to reflect the installed network ( ). Test reports: Record test results for each fiber link. Maintenance plan: Include procedures for troubleshooting, restoration, and future upgrades ( ).

6.

Handover and Operation

Final inspection: Ensure all cables are properly secured, labeled, and tested. Integration: Connect fiber links to network switches, servers, and other IT equipment. Monitoring: Implement network monitoring to detect faults or performance issues.

This flowchart ensures a structured, reliable, and maintainable fiber optic network in a computer room, balancing technical performance with operational efficiency ( ).
