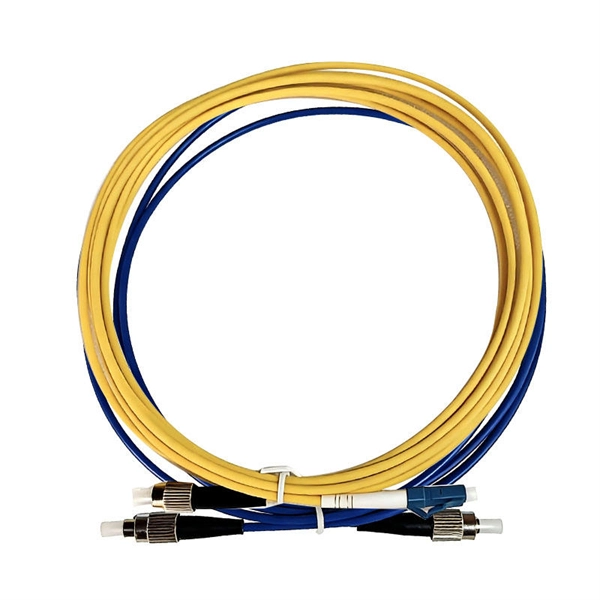

Fiber optic patch cord connector wiring sequence

Fiber optic patch cord connectors must be wired and aligned according to connector type, polarity, and standards to ensure low insertion loss and reliable optical transmission.

General Wiring and Installation Principles

Proper wiring of fiber optic patch cords begins with connector alignment and handling. Each connector has a key or keyway that must match the transceiver or adapter to ensure correct orientation and minimal signal loss. Before mating, connectors should be cleaned and inspected to remove dust or debris, which can degrade performance.

Adhering to minimum bend-radius rules prevents excessive stress and attenuation, typically 400mm for patch cords in ODF frames. Patch cords should be routed neatly, avoiding sharp bends or crossing multiple cable management spools. Proper labeling at both ends ensures traceability and reduces mis-patching during network upgrades.

Connector types must match: for example, SC/APC and SC/UPC connectors must not be cross-mated due to incompatible endface geometry.

LC and SC Connector Wiring

For L

C and SC connectors, wiring involves aligning the connector key with the adapter keyway.

L

C connectors have a latch that must be pressed downward when removing.

S

C connectors are typically push-pull type. Both types require careful handling to maintain insertion loss and return loss performance. Single-mode fibers are used for long distances, while multimode fibers are suitable for short distances.

UP

C polish provides low insertion loss, while APC polish is preferred for high-speed networks due to better return loss performance. MPO/MTP Connector WiringMPO (Multi-fiber Push On) connectors are high-density connectors used for 12, 24, or more fiber cores.

MP

O connectors have male and female versions, with male connectors containing two PIN pins for alignment. The ferrules have guide holes and pins to ensure precise mating. A spring in the ferrule locks the connector into the MPO adapter.

The connector body has a key with concave and convex points to limit relative position, ensuring correct fiber sequence (P1, P2, etc.),. 12-core MPO is common for 40G networks, while 24-core MPO is used for 100G networks. Proper wiring ensures that the fiber polarity is maintained, which is critical for multi-fiber transmission.

Testing and Verification

After wiring, each patch cord segment should be tested using an optical power meter or a visible light source to verify connectivity and detect misconnections. Power levels should meet design specifications, typically less than -22dB at the splitter exit and less than -23dB at the user end.

Summary

Correct fiber optic patch cord wiring involves: Selecting the appropriate connector type and fiber mode. Aligning keys and keyways for LC, SC, or MPO connectors. Cleaning and inspecting connectors before mating.

Maintaining proper bend radius and neat routing. Labeling both ends for traceability. Testing optical paths to ensure low insertion loss and correct polarity.

Following these methods ensures reliable, high-performance fiber optic networks in data centers, FTTH deployments, and integrated wiring systems.
