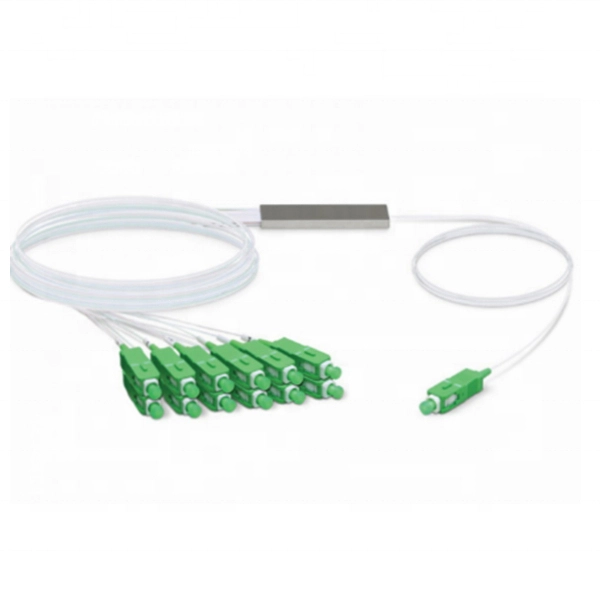

Requirements for Outdoor Pigtail Binding

Outdoor fiber optic pigtails require robust, waterproof construction, proper splicing techniques, and adherence to environmental and mechanical protection standards to ensure long-term performance. Key Requirements1. Cable and Connector Selection Outdoor pigtails must use waterproof and armored fiber cables with reinforced PE jackets to withstand harsh environmental conditions such as moisture, UV exposure, and mechanical stress.

Stainless steel reinforcement is often included for additional durability. Single-fiber pigtails (simplex LC) are common, but multi-fiber or ribbon pigtails are used for high-density applications. The fiber type should match the network requirements (single-mode or multi-mode), and color coding should follow TIA-EIA-598-A standards for proper identification.

2. Splicing Methods Two primary splicing methods are used: Fusion Splicing: Provides low-loss, permanent connections and is preferred for outdoor installations due to its reliability and durability. Mechanical Splicing: Offers quick termination but may have slightly higher insertion loss; suitable for temporary or less critical outdoor connections.

3. Environmental Protection Outdoor pigtails must be protected against water ingress, dirt, and physical damage. This includes: Using watertight enclosures or handholes for splices.

Avoiding placement in areas prone to flooding or mud accumulation. Ensuring proper strain relief and avoiding sharp bends beyond the cable's minimum bend radius. 4.

Mechanical Considerations

Support cables with mid-span clamps if spans exceed recommended lengths (typically 150 feet for messenger-supported drops). Avoid crushing, kinking, or excessive pulling forces during installation to prevent signal degradation. Use drip loops where necessary to prevent water from entering connectors or enclosures.

5. Testing and Documentation After installation, every pigtail connection should be tested for insertion loss and return loss using a light source and power meter or OTDR for long outside plant links. Proper documentation of test results, splice locations, and cable routing is essential for future maintenance and network restoration.

6.

Safety and Handling

Always wear eye protection when handling fiber ends or connectors. Avoid direct exposure to laser light from active fibers. Keep connectors clean and free from dust or debris before mating.

By following these requirements, outdoor pigtail installations can achieve high reliability, low signal loss, and long-term durability, even in challenging environmental conditions.
