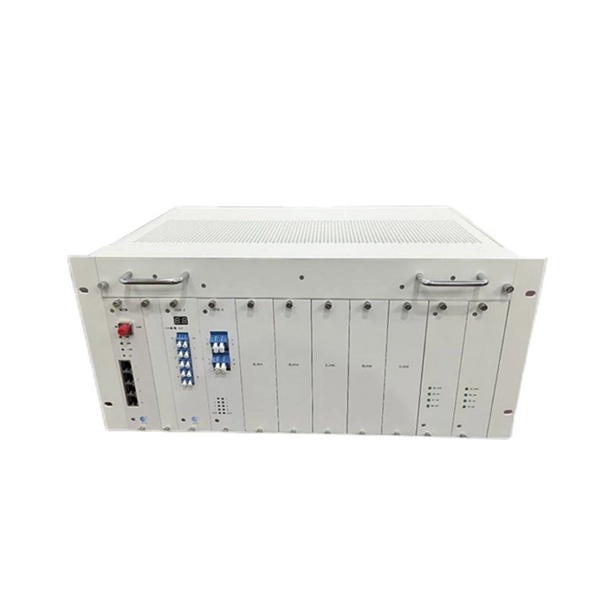

Relay Protection of Capacitors

Capacitor protection relays safeguard MV and HV capacitor banks from internal faults, overloads, unbalances, and external disturbances, ensuring safe and reliable operation.

Purpose of Capacitor Protection Relays

Capacitor banks, commonly used for reactive power compensation and harmonic filtering, are vulnerable to internal faults such as capacitor element failures, flashovers, phase-to-phase, or phase-to-earth faults, as well as external stresses like overvoltage and harmonic distortion. Protection relays are designed to detect abnormal conditions early and disconnect the capacitor bank to prevent damage, fire hazards, or unscheduled outages.

Key Protection Functions

Modern capacitor protection relays provide multiple protective functions, including: Overvoltage and undervoltage protection: Prevents damage from sustained voltage deviations or harmonics. Overcurrent and undercurrent protection: Detects excessive or insufficient current that may indicate faults or disconnection issues. Unbalance detection: Monitors phase-to-phase or phase-to-neutral current/voltage imbalances, which can indicate failing capacitor units.

Earth fault protection: Identifies leakage currents or insulation failures to prevent fire or equipment damage. Thermal and overload protection: Monitors temperature and load to prevent overheating of capacitors, inductors, and resistors in filter circuits.

Types of Capacitor Protection Relays

Several types of relays are used depending on system voltage and complexity: Single-phase unbalance relays (e.g., KSR1): Monitor voltage and current imbalances in MV and HV applications, with programmable CT ratios and multiple measurement channels for versatile monitoring. Comprehensive protection relays (e.g., CPR 500): Provide protection for capacitive, inductive, and resistive elements in three-phase capacitor banks and harmonic filters, with communication capabilities like IEC61850, RS485, and Ethernet for integration into modern substations.

Pro-

N series relays: Offer scalable protection for small to large capacitor banks, supporting communication protocols such as Modbus, IEC60870, IEC61850, and DNP3.

Monitoring and Control Features

Modern relays allow continuous supervision of capacitor banks, providing alarms and automatic tripping before major damage occurs. Features include: Multiple measurement channels for voltage and current monitoring. Programmable alarm and trip thresholds for unbalance, overvoltage, and thermal overload.

Integration with SCADA or substation automation systems via standard communication protocols. Optional fan control and temperature monitoring to manage capacitor bank cooling.

Benefits

Using capacitor protection relays ensures: Enhanced safety by preventing fires and equipment damage. Improved reliability of power factor correction and harmonic filter systems. Reduced maintenance costs by early detection of faults.

Compliance with industry standards for MV and HV installations. In summary, relay protection for capacitors is essential for safe, efficient, and reliable operation of MV and HV capacitor banks, combining fault detection, monitoring, and automated control to prevent damage and maintain system stability.
