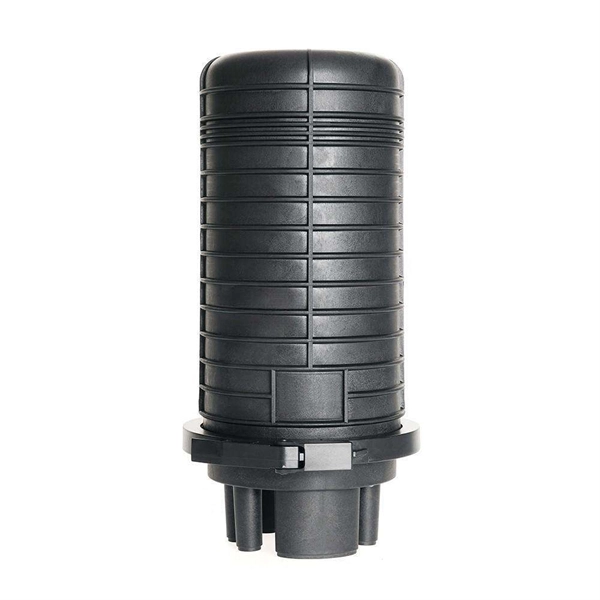

Huawei Terminal Box Fiber Optic

The Huawei Fiber Optic Terminal Box is a compact, reliable device for terminating and managing fiber optic cables in FTTH and enterprise networks.

Overview

The Huawei Fiber Optic Terminal Box is designed to terminate, protect, and organize fiber optic cables, ensuring signal integrity and efficient network management in both residential and commercial deployments. It is compatible with Huawei's optical network terminals (ONTs) and other fiber infrastructure, making it ideal for FTTH installations and small business networks. Key FeaturesHigh-density termination: Supports multiple fiber cores, such as 8-core configurations, allowing efficient management of multiple subscriber connections.

Durable and protective housing: Many models feature IP55 to IP65-rated protection, safeguarding against dust, moisture, and physical impact. Flexible installation: Tool-less designs and modular trays simplify splicing, distribution, and maintenance, reducing deployment time by up to 40% compared to traditional solutions. Compatibility: Works with Huawei's fiber optic equipment and supports GPON, XGS-PON, and other common FTTH network types.

Splicing and connector support: Supports fusion splicing, mechanical splicing, and FA connectors for secure fiber connections.

Types and Models

Indoor Access Terminal Box (ATB3101): Installed on walls to provide fiber sockets for ONTs, supporting various splicing methods. Outdoor Fiber Access Terminal (FAT2808 series): Includes FAT2808SD-8 and FAT2808SD-16, designed for splicing, distribution, and optical splitting at user access nodes, with pre-connected drop cables for efficient deployment.

FTT

H 8-core Terminal Box: Compact, high-density design with IP65 protection, ideal for B2B and residential FTTH deployments. FCDB-H408M3: Supports up to 8 cores, pre-connected adapters, and features waterproof and anti-corrosion performance for outdoor use.

Installation Guidelines

Select a suitable location: Mount the box in a dry, secure area near the fiber entry point. Prepare the fiber cable: Insert the fiber optic cable into the box and secure it using the provided adapters. Connect network devices: Attach the ONT or other devices to the box using the appropriate ports.

Maintain organization: Use modular trays and cable management features to keep fibers neat and accessible for future maintenance. Environmental precautions: For outdoor boxes, apply dielectric grease to O-ring seals to prevent moisture ingress in high-humidity areas.

Applications

Residential FTT

H networks: Terminate incoming fiber and connect to ONTs for high-speed internet. Enterprise networks: Manage multiple fiber connections in a compact, organized manner. Network expansion and maintenance: Modular design allows easy upgrades and repairs without disrupting service.

The Huawei Fiber Optic Terminal Box is an essential component for secure, organized, and efficient fiber optic network deployment, providing reliable performance in diverse environmental conditions while simplifying installation and maintenance.
