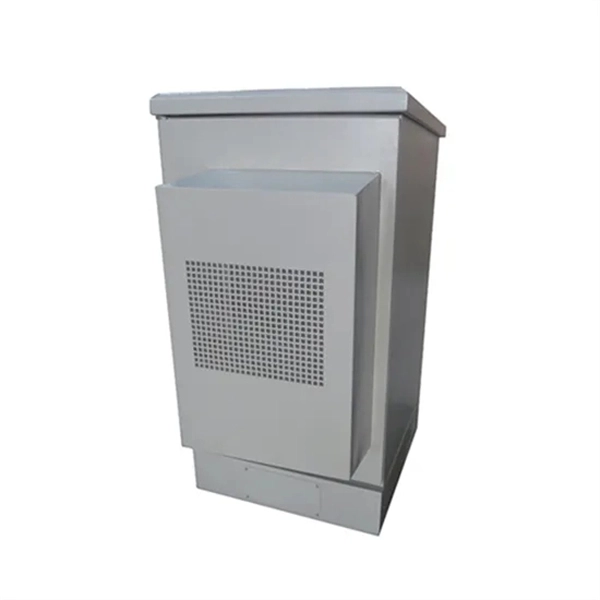

Convection method of distribution box

Convection in distribution boxes dissipates heat either naturally or through forced airflow to maintain safe operating temperatures and prolong equipment life.

Overview of Convection in Distribution Boxes

Distribution boxes generate heat during operation, which must be managed to prevent overheating. Convection is a key method of heat transfer in these enclosures, involving the movement of air to carry heat away from hot components. Convection can occur in two main forms: Natural Convection: Heat rises due to temperature-induced density differences in the air.

Hot air inside the box moves upward while cooler air enters from below, creating a passive airflow that removes heat. The effectiveness depends on the box material, size, and the placement of ventilation holes or heat sinks, typically made of metals like aluminum or copper to enhance thermal conductivity. Forced Convection: Fans or air ducts actively move air through the distribution box, accelerating heat removal.

This method is particularly useful for high-power boxes or environments with elevated ambient temperatures. Forced convection reduces thermal stratification and ensures more uniform temperature distribution inside the box.

Design Considerations

Heat Sinks and Cooling Holes: Adding fins or perforations to the casing increases the surface area for heat transfer, improving natural convection efficiency. Ventilation Placement: Proper positioning of intake and exhaust vents enhances airflow and prevents hotspots. Material Selection: Metals with high thermal conductivity, such as aluminum or copper, are preferred for internal components or heat sinks to facilitate rapid heat transfer to the air.

Hybrid Systems: Some distribution boxes combine natural and forced convection, using fans along with heat sinks to optimize cooling performance.

Benefits of Convection Cooling

Maintains safe operating temperatures for electrical components. Reduces the risk of thermal damage and prolongs service life. Enhances reliability and efficiency of the distribution system.

In forced convection setups, ensures uniform temperature distribution and minimizes thermal stratification. In summary, the convection method in distribution boxes relies on either passive natural airflow or active forced airflow to remove heat. Proper design, including heat sinks, ventilation, and material selection, is essential to maximize cooling efficiency and maintain the safe operation of electrical equipment.
