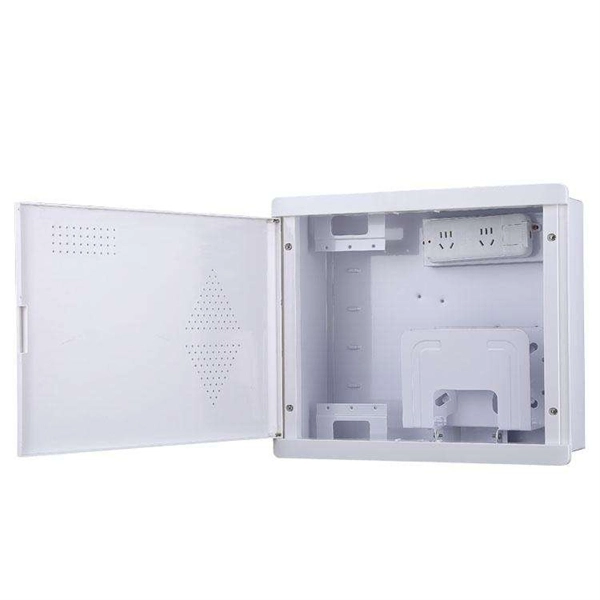

Circuit switches in the distribution box

Fiber and communications infrastructure knowledge brief Published 21 Oct 2024

Use this reference to prepare product questions for BAGYOU FIBRE. Check interfaces, capacity, protection and installation requirements against the current product documentation.

Circuit switches in a distribution box control, protect, and isolate electrical circuits to ensure safe power distribution and maintenance.

Purpose of Circuit Switches

Circuit switches in a distribution box, such as MCBs (Miniature Circuit Breakers), RCCBs (Residual Current Circuit Breakers), and isolators, serve multiple purposes: they protect circuits from overloads and short circuits, allow safe isolation for maintenance, and provide a visible break in the electrical pathway to prevent accidental energization. Isolation switches, also called disconnectors, are particularly important for creating a physical gap in the circuit, ensuring downstream equipment is completely de-energized.

Types of Circuit Switches

Main Switch / Double Pole MCB: Acts as the primary control for the entire distribution box, handling the full input supply and allowing all downstream circuits to be switched on or off simultaneously.

Single-

Pole MC

Bs: Protect individual circuits from overloads and short circuits, commonly used for lighting or small appliances.

RCC

B / RCD: Detects leakage currents and protects against electric shocks, often rated at 30mA for domestic installations. Isolators / Safety Switches: Manually operated switches that allow maintenance personnel to safely disconnect circuits. Many modern isolators support lockout/tagout (LOTO) procedures for added safety.

Installation and Wiring

In a typical single-phase distribution box, the main MCB receives the input supply (phase and neutral) and distributes power to the RCCB, which then feeds the output MCBs for individual circuits. Busbars within the box connect all switches and provide a central point for current distribution. Proper wiring ensures that each circuit is protected and can be safely isolated when needed.

Safety and Compliance

Circuit switches are critical for human safety and equipment protection. Isolation switches prevent backfeed from alternative power sources like generators or solar panels, while MCBs and RCCBs prevent electrical faults from causing damage or shock. For industrial or hazardous environments, explosion-proof switches are available, certified under IECEx and ATEX standards, providing high protection against sparks and environmental hazards.

Key Considerations

Ensure switches are rated for the voltage and current of the installation. Use lockable isolators for maintenance safety. Follow local electrical codes for RCCB and MCB installation.

Consider smart DB boxes for energy monitoring and remote control in modern installations. Circuit switches are essential components of a distribution box, combining protection, control, and safety to maintain reliable and secure electrical systems.
