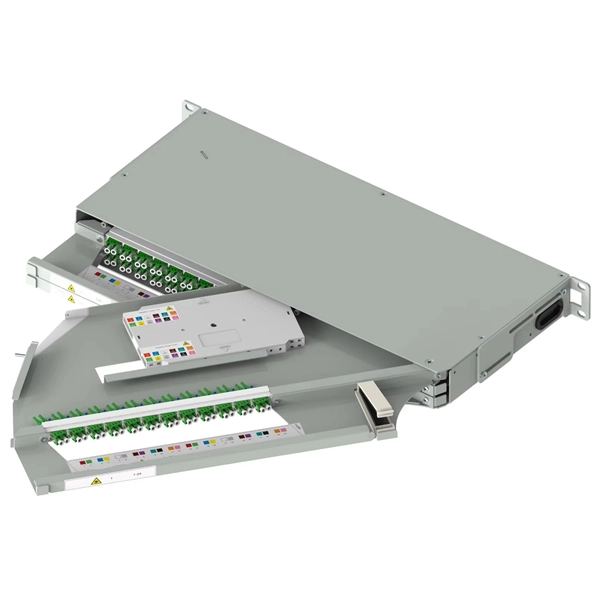

How to connect a dual-core fiber optic patch cord

Dual-core fiber optic patch cords can be connected using duplex connectors, hybrid connectors, or by separating the cores for individual simplex connections, depending on equipment and network requirements. Duplex vs.

Simplex Connections

A dual-core fiber optic patch cord typically comes in a duplex configuration, meaning two fibers are joined side by side in a single jacket, often referred to as a "zip cord". You can connect it in the following ways: Duplex Connector ConnectionUse a duplex connector such as LC, SC, or FC, which houses both fibers in a single assembly. This method ensures proper alignment and polarity, making it ideal for high-speed data links in data centers or LANs.

Duplex connectors are commonly used with equipment that has duplex ports, allowing simultaneous transmit and receive channels.

Hybrid Connector Connection

If the devices on each end have different connector types, a hybrid patch cord (e.g., LC to SC) can be used. This allows dual-core fibers to connect across different port standards without signal loss.

Separate Simplex Connections

The dual-core cord can be unzipped into two individual fibers and connected using simplex connectors. This is useful when the equipment only supports single-fiber ports or when routing requires separate paths. Care must be taken to maintain correct polarity (transmit to receive) to avoid communication errors.

Additional Considerations

Fiber Type Compatibility: Ensure the patch cord matches the fiber type of the network (single-mode or multimode) to prevent signal degradation. Connector Polish Type: Use matching polish types (UPC, APC, or PC) on both ends to minimize insertion loss and back reflection. Jacket and Environment: Choose the appropriate jacket material (PVC, LSZH, OFNP) based on installation environment and fire safety requirements.

Bend-

Insensitive Fiber: For tight spaces or high-density racks, consider bend-insensitive fibers to reduce signal loss. By selecting the correct duplex or hybrid connectors, maintaining polarity, and matching fiber type and polish, dual-core fiber optic patch cords can be reliably connected for high-performance optical networks.
