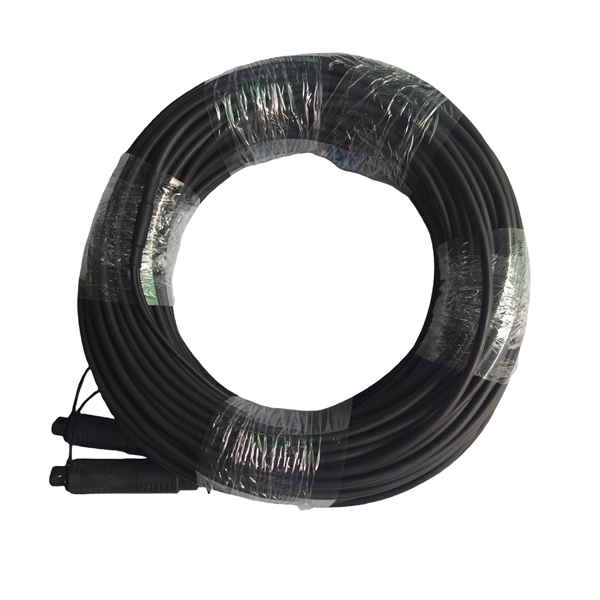

Construction of Three-Network Optical Cable

Three-network optical cable construction involves careful planning, cable selection, and installation to support multiple network layers with high reliability and scalability.

Network Planning and Design

The first step in constructing a three-network optical cable system is project planning and site survey. Engineers assess the geographic layout, existing infrastructure, and potential obstacles to determine the optimal routes for the fiber cables. This includes mapping streets, utility easements, and private property boundaries, and deciding whether the installation will be aerial, underground, or a combination.

The design must account for network topology, often using a hub-and-spoke or ring architecture to ensure redundancy and reliability across the three networks.

Cable Selection

Selecting the appropriate optical fiber is critical. Single-mode fiber (SMF) is typically used for long-distance, high-bandwidth networks, while multi-mode fiber (MMF) is suitable for shorter distances. The cable must also be designed to accommodate three separate network layers, which may include backbone, distribution, and access networks.

Considerations include fiber count, tensile strength, environmental protection (armored or non-armored), and compatibility with existing equipment.

Installation Process

Once planning and procurement are complete, the construction phase begins: Permits and Approvals: Obtain necessary municipal and private easements to ensure legal compliance and safety. Worksite Preparation: Mark existing utilities to prevent damage during trenching or pole installation. Notify local residents and businesses about construction schedules.

Cable Deployment: For underground installation, use trenching, micro-trenching, or directional boring. For aerial deployment, attach cables to poles with proper tensioning. Ensure separation between the three network layers to prevent interference and allow future maintenance.

Splicing and Termination: Fiber splices and connectors are installed at distribution points and endpoints. Proper fusion splicing and testing ensure minimal signal loss and high network performance. Testing and Documentation: Conduct optical time-domain reflectometry (OTDR) and power loss tests to verify signal integrity.

Document cable routes, splice points, and network topology for future maintenance and troubleshooting.

Maintenance and Scalability

A well-constructed three-network optical cable system should allow easy upgrades and expansions. Proper labeling, protective conduits, and adherence to industry standards ensure long-term reliability. Regular inspections and testing help maintain performance and prevent outages.

By following these steps, a three-network optical cable can provide high-speed, reliable connectivity for multiple services, supporting backbone, distribution, and access networks efficiently.
