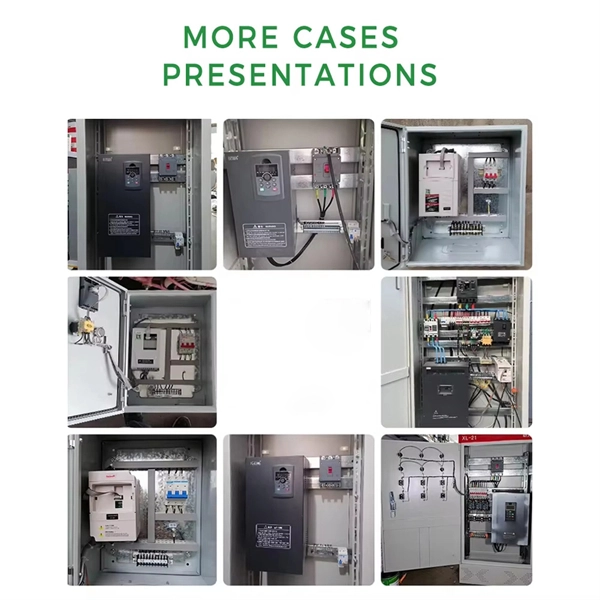

Fan Starter Distribution Box

A Fan Start-up Distribution Box is an electrical control unit designed to manage the starting, stopping, and protection of fans, often supporting direct or star-delta start modes for efficient and safe operation.

Purpose and Function

A fan start-up distribution box primarily controls the start and stop of fans and can be integrated with fire dampers or other fire-fighting systems for safety applications. It ensures smooth operation of motors, reduces mechanical stress, and protects the fan and electrical system from damage caused by inrush currents or electrical faults.

Starting Methods

These boxes typically support: Direct start: The fan motor starts immediately at full voltage, suitable for small motors or light loads. Star-delta start: Reduces the initial inrush current by starting the motor in a star configuration and then switching to delta, which is ideal for high-power motors or frequent start-stop operations.

Protection Features

Fan distribution boxes include multiple built-in protection mechanisms to safeguard the motor and system: Over-current and overload protectionPhase loss and short-circuit protectionOpen circuit and power loss detectionAutomatic alarms in case of anomalies Design and CustomizationThe boxes can be customized according to fan type and site requirements. Shells may be made from ordinary steel or stainless steel, and the internal circuit design follows national standards. They are suitable for both indoor and outdoor environments, often with IP54 protection for dust and water resistance.

Applications

Fan start-up distribution boxes are widely used in: Industrial ventilation systemsWater pump and drainage systemsHVAC systems in buildingsFire safety and smoke extraction systems AdvantagesSmooth and gentle motor startup, reducing mechanical wearEnergy savings of up to 30% compared to traditional starting methodsRemote control capability via PLC or automation systemsCompact, easy to install, and adaptable to various motor sizes, typically below 20 kW In summary, a Fan Start-up Distribution Box is an essential component for controlling, protecting, and optimizing fan operations in industrial, commercial, and safety-critical applications, offering both efficiency and reliability.
