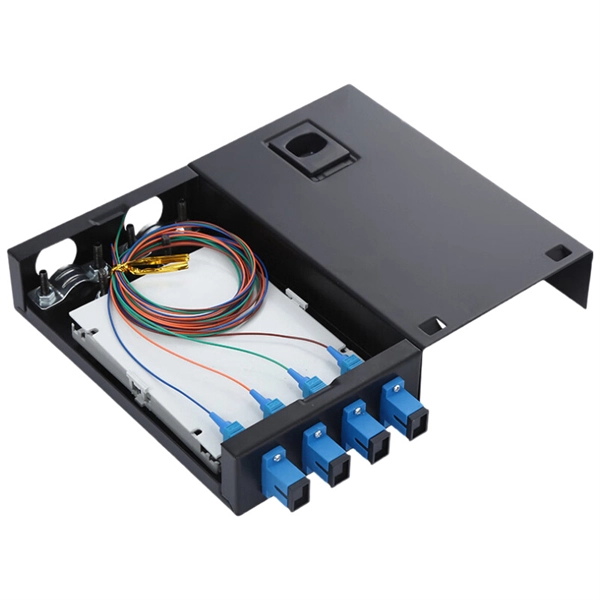

Distribution box series grounding wire

A yellow-green insulated copper wire is typically used as the grounding wire in distribution boxes, with a cross-sectional area meeting local standards.

Wire Type and Material

The grounding wire in a distribution box is generally a copper core wire due to its excellent conductivity and reliability for safety purposes. The wire is usually yellow-green insulated, which serves as a visual indicator for grounding and ensures compliance with electrical safety standards.

Wire Size

The cross-sectional area of the grounding wire depends on the market and application: In the US, a 10 AWG (5. 26 mm²) wire is commonly used for general grounding. In other international markets, a 6 mm² wire is standard.

For connections between mounting plates and spindle plates or other heavy-duty components, larger wires such as 16 mm² (or 6 AWG / 13. 29 mm² in the US) may be required to maintain low resistance and ensure proper grounding.

Connection Method

Locate the grounding bar or PE bar inside the distribution box, usually marked with "PE" or a grounding symbol. Connect the power ground wire directly to the PE bar. Strip the wire to the required length, insert it into the terminal, and tighten the screw securely.

Ground electrical components inside the box by connecting them to the PE bar using copper wires to ensure safe operation. Ensure all metal parts of the box, including doors and conduits, are electrically bonded to the PE bus using copper wires or braided soft wires.

Safety Considerations

All connections must be firm and free of looseness to prevent high resistance points. Ground resistance between system parts should be less than 0. 1 Ohm to ensure effective grounding.

Parallel grounding paths are preferred over sequential links to maintain safety even if one connection fails. Regular inspection and maintenance are recommended to ensure the grounding system remains effective over time. By following these guidelines, the distribution box grounding will provide a safe path for fault currents, protect personnel, and ensure proper operation of electrical equipment.
