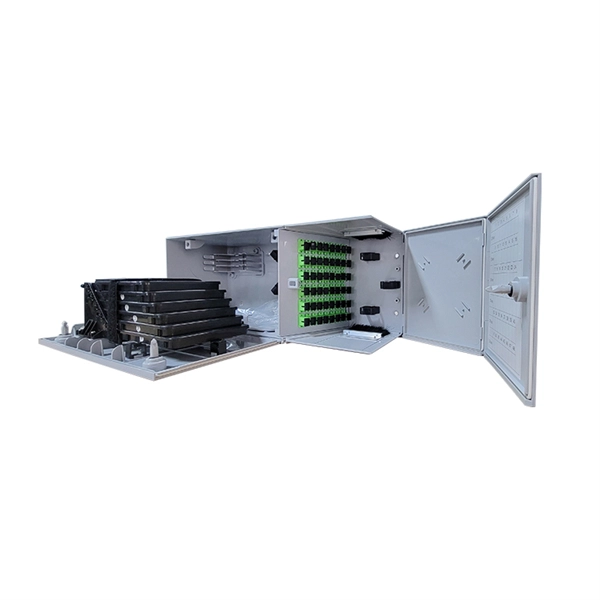

Replacing the fiber optic module with the 86 panel

Fiber and communications infrastructure knowledge brief Published 13 Feb 2026

Use this reference to prepare product questions for BAGYOU FIBRE. Check interfaces, capacity, protection and installation requirements against the current product documentation.

To replace a fiber optic module in an 86-panel, safely remove the existing SFP/SFP+ module, handle fiber cables carefully, and install the new module following proper ESD and alignment procedures.

Preparation and Safety

Power Off or Confirm Hot-Swap Capability: Check if your 86-panel supports hot-swapping. If not, power down the device to prevent electrical damage.

Some SF

P modules can be replaced while the device is running, but always verify in the panel's documentation.

ES

D Protection: Wear an anti-static wrist strap and connect it to a grounded metal surface to prevent electrostatic discharge that could damage the module or panel. Clean Workspace: Work in a dust-free environment and avoid touching the fiber connectors directly. Use dust caps to protect optical interfaces until ready to connect.

Removing the Existing Module

Disconnect Fiber Cables: Gently unplug the fiber optic cables from the module, taking care not to bend or damage the fibers. Release the Latch: Most SFP modules have a latch mechanism (bale-clasp, pull tab, slide tab, or actuator button). Pull or press the latch according to the module type to unlock it.

Remove the Module: Hold the module by its metal casing and carefully pull it straight out of the slot. Avoid twisting or applying excessive force. Store Safely: If the module will be reused, place it in a static-free container to prevent damage.

Installing the New Module

Inspect the Module: Check the new SFP/SFP+ module for any visible damage and ensure it matches the slot type and fiber specification (single-mode or multimode),. Align and Insert: Hold the module with the connector side facing the slot, align it carefully, and slide it in evenly until it clicks into place. Ensure the latch engages securely.

Reconnect Fiber Cables: After installation, connect the fiber optic cables, ensuring proper orientation for TX/RX ports and avoiding sharp bends. Verify Operation: Power on the device (if it was off) and check the module's status LED. A green light typically indicates proper operation and link establishment.

Additional Tips

Wait Between Insertions: If installing multiple modules, wait a few seconds between each insertion to prevent port errors. Avoid Frequent Removal: Repeatedly removing and inserting modules can shorten their lifespan. Clean Connectors: Use fiber cleaning tools to remove dust or contaminants before connecting cables.

Following these steps ensures a safe and effective replacement of fiber optic modules in an 86-panel, maintaining network integrity and minimizing the risk of damage to both the module and the panel.
